Hub Internet Dropoff

The user can select the required Hub Internet Dropoff Configuration and also add new Configurations if needed.

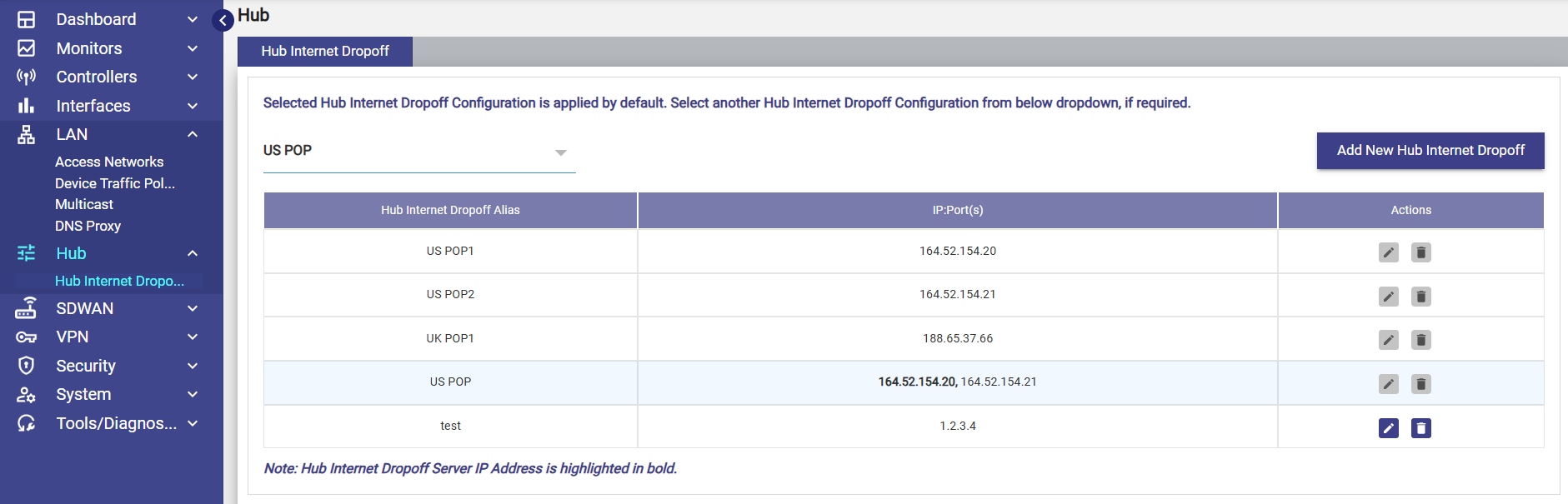

·       Select the Hub option from the side bar. The Hub Internet Dropoff tab is selected by default.

·       Select the required configuration from the dropdown menu.

·       The available configurations are listed down in a table.

·       Click Add New Hub Internet Dropoff button to add a new configuration.

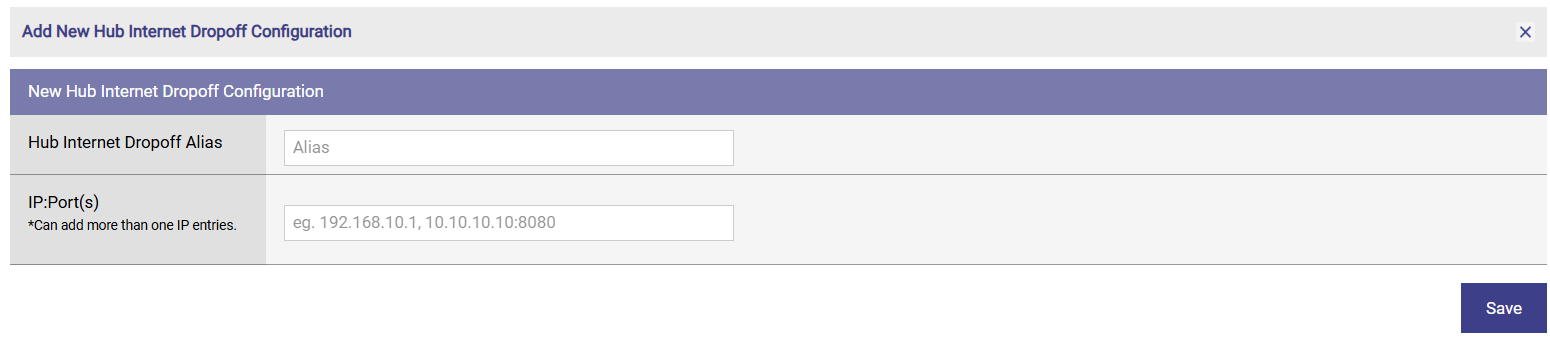

·       The Add New Hub Internet Dropoff dialog box opens.

·       Enter the Hub Internet Dropoff Alias.

·       Enter the IP:Port combinations.

·       Click Save.

·       The Configuration is saved and can be selected from the dropdown menu.
