Weighting Chart

The Weighting Charts area provides time chart functionality of Bandwidth Bonded Internet Source (WAN) link performance over selectable time periods.

The Weighting Chart depicts the percentage of each WAN source that was used in the Bonded Set.

Native Peak Rate Estimates and PEP (Performance Enhancing Proxy) Peak Rate Estimates are also plotted for the selected Bonded Set’s component WAN sources, for a better look into the details of each link and the connection health.

Once the EdgeOS System is audited and possibly reconfigured, user can view the weighting % of the bonded interfaces at the periodicity of 10 seconds. If the US internet is down, then only the Native - Peak Rate Estimate chart becomes available, and the weighting of the bonded interfaces is performed based on the Native - Peak Rate Estimate. If the US internet is up, then the PEP - Peak Rate Estimate chart also becomes available, and the weighting of these bonded interface is done based on the PEP - Peak Rate Estimate.

Note: This menu item is available for administrative users only.

Viewing Weighting Charts

To view the weighting %, perform the following steps.

• Log on to the EdgeOS System. The home page appears.

• Click the Monitors option from the side bar.

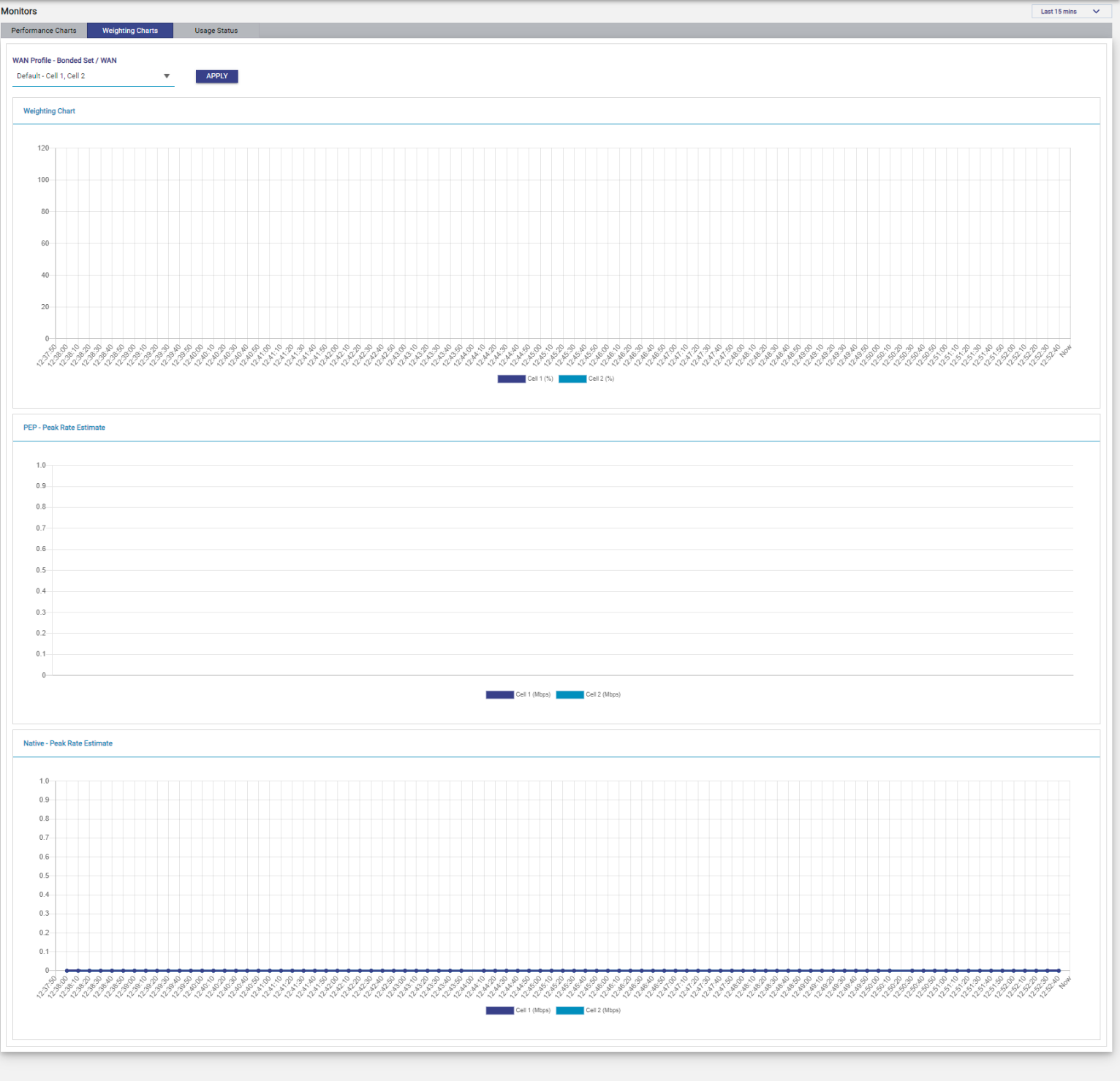

• Click Weighting Charts tab. The Weighting Charts page appears, see figure below.

WAN Profile - Bonded Set / WAN

Bonded set for which Weighting Charts need to be viewed. To view the weighting chart, perform the following steps.

• In the WAN Profile - Bonded Set / WAN field, select the WAN check box.

• Click Apply button.

• The weighting chart becomes available.

• Neither bonded set can be selected with the single WAN(s), nor a single WAN can be selected with the bonded set.
