OpenEdge RS400 - Hardware Description
Enterprise Internet and LAN Management System
The RS400 system is a high-performance Wi-Fi 6 AX6000 router designed to deliver robust networking capabilities for enterprise environments. It runs Kognitive OWRT firmware as part of the Kognitive Edge platform. It can be managed directly, or seamlessly through the Kognitive Cloud web portal and the Edge Mobile App.
The RS400 system supports an array of services efficiently and effectively, reducing complexity and simplifying installations. The Kognitive Edge platforms consists of software, applications, cloud systems, and advanced analytics to choose the best network for the location and conditions while providing users the tools to customize their system for the best user experience.

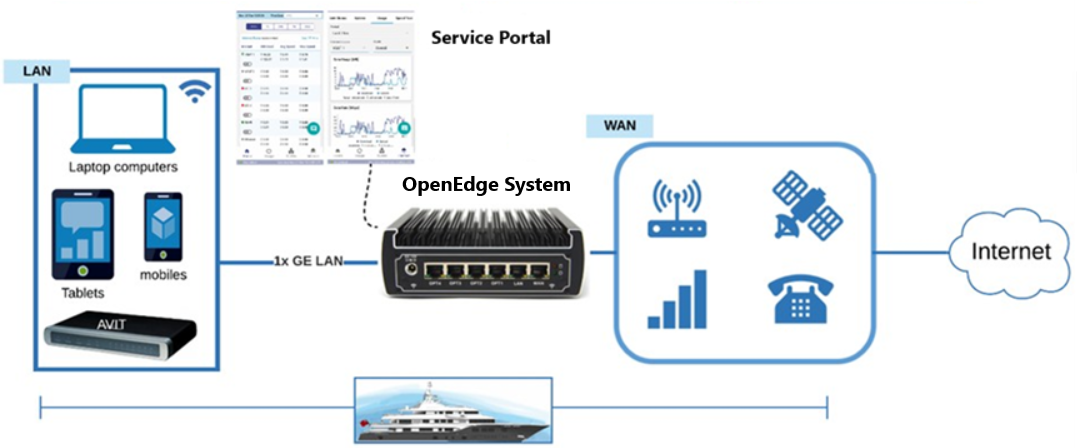

Configuration of Equipment
RS400 System Physical Design
The RS400 system boasts a sleek design with multiple interfaces to accommodate various networking needs. The following figures show the primary interfaces and connections of the RS400 system.

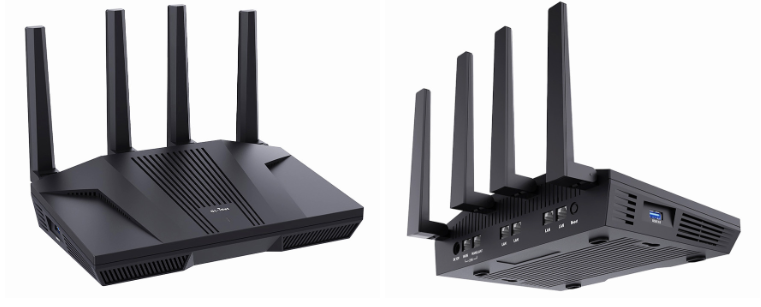

Front View And Rear View of RS400 System
Front Panel:
One USB 3.0 port for system management as well as additional WAN/LAN ports by using an adapter or appropriate USB WAN device, like a 5G modem.
One reset button for system reboot or factory reset functions.
Rear Panel:
Two 2.5G Ethernet ports configurable as WAN or LAN, supporting speeds of 10/100/1000/2500 Mbps.
Four 1G Ethernet LAN ports supporting 10/100/1000 Mbps connections.
DC power input (12V/4A) via a 5.5*2.1mm connector.
It operates on the MediaTek Filogic 830 system-on-chip (SoC), featuring a quad-core CPU clocked at 2.0 GHz, ensuring efficient data processing and network management.
For details of the external interfaces and primary limits or technical specifications, refer the below table.
External Interfaces | Primary Limit or Specification |
WAN Management | 4 WAN Sources (2x RJ45, 1x USB, 1x WiFi) |
Processor | MediaTek MT7986AV Quad-core @ 2.0 GHz |
Memory | 1 GB DDR4 RAM |
Storage | 8 GB eMMC |
Wi-Fi Standards | IEEE 802.11a/b/g/n/ac/ax |
Wi-Fi Speed | 1148 Mbps (2.4 GHz), 4804 Mbps (5 GHz) |
Antennas | Four external dual-band antennas for 2.4 GHz and 5 GHz frequencies |
Ethernet | 6x GE ports, additional 1x GE ports using USB expansion. |
Expansion | 1x USB 3.0 ports - GE or 10GE ethernet; 5G modem adapter supported. |
LED Indicators | One dual-color LED for power and internet status |
Power Consumption | Less than 20W |
Operating Temperature | 0°C to 40°C (32°F to 104°F) |
Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
Dimensions | 23.3 x 13.7 x 5.3 cm |
Weight | 761 grams |
Cooling | Passive, Fanless – Silent. |
Mounting | Standalone / Wall mounted |
Power | +12VDC (50W Max); 100-240 VAC, 50-60 Hz (AC/DC Power Supply Included) |
Warranty | 1 year |
RS400 System Technical Specifications
Networking Features
The RS400 system is equipped with advanced networking capabilities:
Ethernet Ports:
Two 2.5G ports (configurable as WAN or LAN) using RTL8221B transceivers.
Four 1G LAN ports managed by the MT7531AE switch chip.
Wi-Fi Performance:
Supports dual-band Wi-Fi 6 with 4x4 MU-MIMO technology, providing enhanced coverage and speeds.
2.4 GHz band offers up to 1148 Mbps, while the 5 GHz band supports up to 4804 Mbps.
Additional Features:
Supports VLAN configurations, allowing for network segmentation and improved security.
Detachable antennas facilitate customization based on specific coverage requirements.
Serial connectivity is available for advanced management and troubleshooting.
Management and Software
The RS400 system operates on a modified version of OpenWrt, providing a flexible and customizable platform for network management. Cloud-managed registration and configuration control provide a convenient, scalable means to monitor and maintain fleets of RS400 deployments.
