System Info

The user can view and edit system details such as Site Name, Device details and Software details using the System Info option. Additionally, it is possible to upgrade the firmware through this Pop-up.

Note: Updating system information is possible only if the user has administrative rights.

Viewing System Information

To view details or information of the system, perform the following steps.

Steps

Log on to the OpenEdge System. The home page appears.
Select the System option from the side bar. The System Info tab is selected by default.

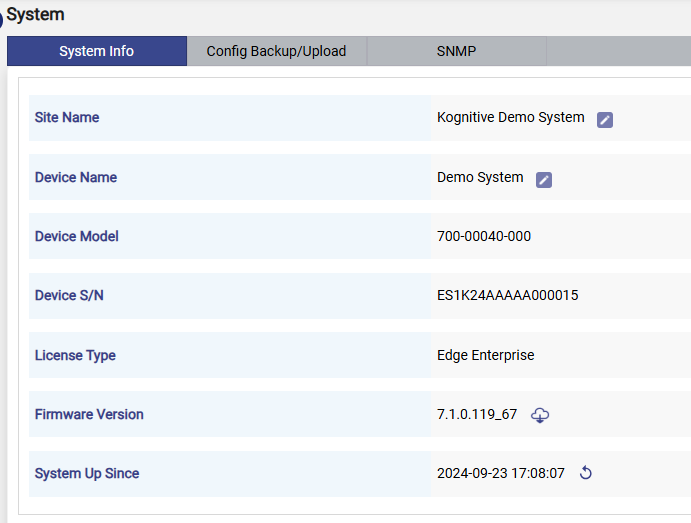

The System Information screen shows the below information:

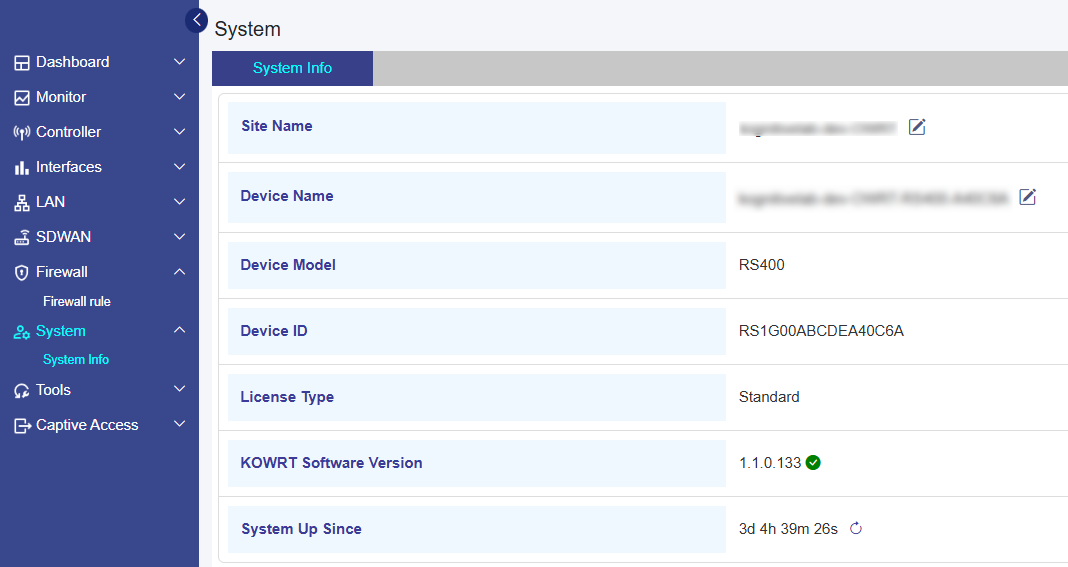

1 (35)-20250313-122616.png — **System Info**

For details of the system information, see tables below.

Fields	Description	Configuration

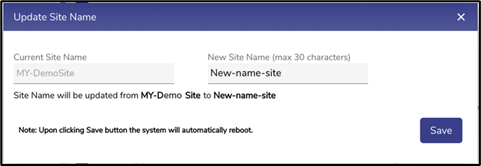

Site Name	This is the location name where the OpenEdge System is assigned to, this location is specified while registering the site. User can modify the Site Name.	A preinstalled server has a Location or Site Name assigned. To update Site Name of the server, perform the following steps. Steps Click the Pencil icon. The Update Site Name pop-up window appears, see Figure Update Site Name. The current Site Name is displayed in the Current Site Name field. Enter the New Site Name in the New Site Name field. Click Save. The system reboots automatically. Thereafter, the new Site Name is reflected.

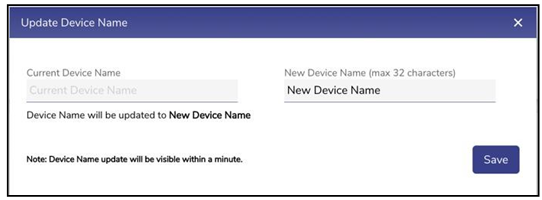

Device Name	This name uniquely identifies the OpenEdge System.	A preinstalled server has a Device Name available. To update Device Name of the server, perform the following steps. Steps Click the Pencil icon. The Update Device Name pop- up window appears, see Figure Update Device Name. The current Device Name is displayed in the Current Device Name field. Enter the new Device Name in the New Device Name field. Click Save. Thereafter, the new Device Name is reflected within 60 seconds.
Device Model	This identifies the part details of the OpenEdge System.	N/A
Device ID	This shows the identification number of the OpenEdge System.	N/A
License Type	This identifies the License Type of the OpenEdge System.
OWRT Software Version	This identifies the firmware version currently installed on the server.	The user can update the firmware installed on the server to the latest version if the current version is not latest. If the current version is same as latest version, then Green tick icon is present next to the firmware version, see Figure Updated Firmware Version. else Cloud icon is present, see Figure System Information. To update the firmware version, see section Installing Latest Firmware.

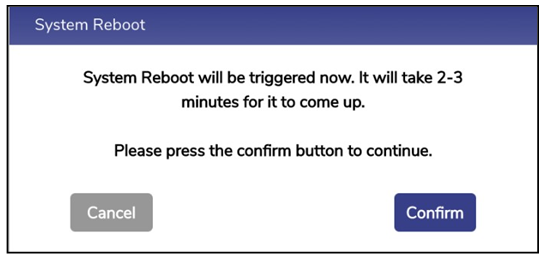

System Up Since	This identifies the date and time since the system is up. The user can modify the system up details.	To modify the system up details, perform the following steps. Steps Click Reboot icon. The System Reboot pop-up window appears, see Figure System Reboot. Click Confirm. The system gets rebooted. Once the system is up, the new date and time are displayed.

Table System Information

Installing latest Firmware

To download the latest firmware, perform the following steps.

Steps

Log on to the OpenEdge System. The home page appears.
Select the System option from the side bar. The System Info tab is selected by default.
Click the Cloud icon next to Firmware version field.

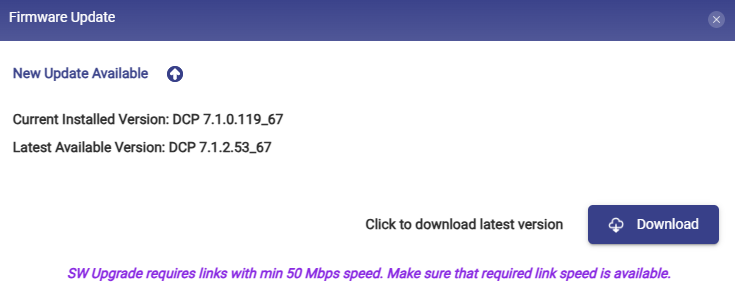

A new Pop-up with version details is available, see figure below.

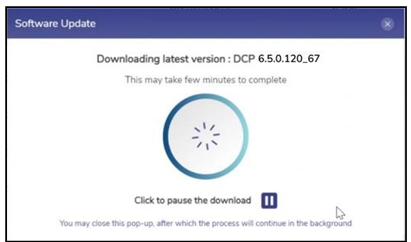

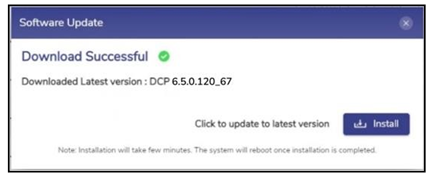

Click the Download button to initiate the download. A Pop-up indicating that the download is in progress appears, this process may take few minutes to complete, see Figure Downloading Latest Version. On successful completion of download, a new Pop-up with details of downloaded version appears, see Figure Download Successful.

To pause the process, click on Pause icon, see Figure Downloading Latest Version. To resume the process, click on icon. The process resumes from where it was paused.

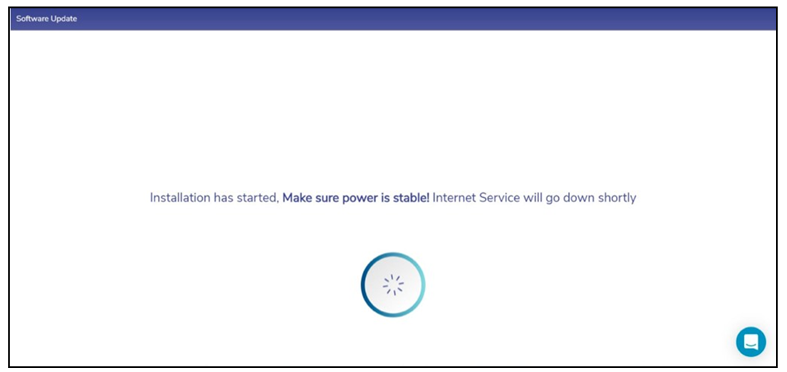

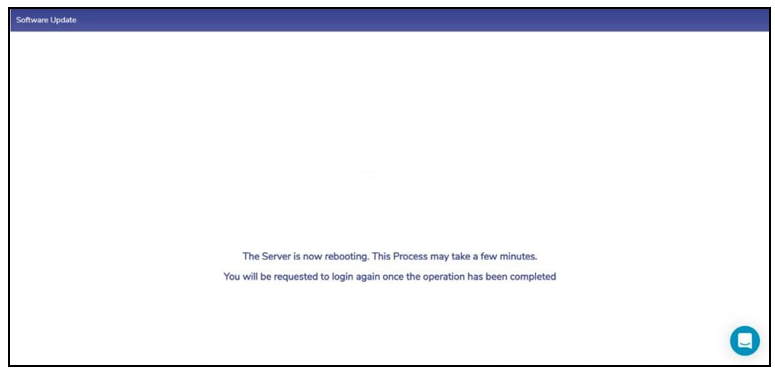

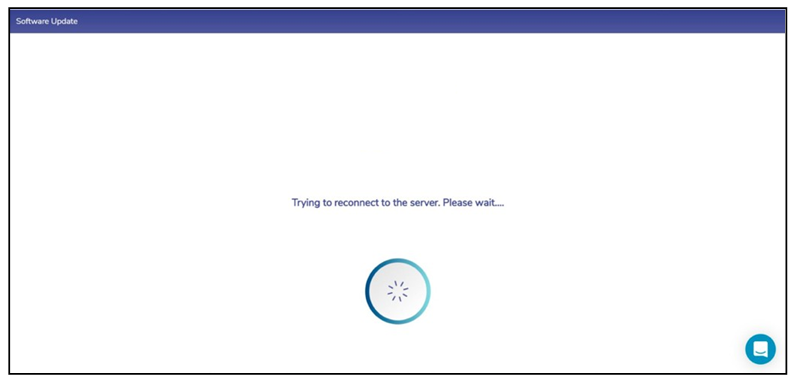

Click the Install button to initiate installation process, see Figure Download Successful. The installation process is initiated, see Figure Installation Initiation. Post installation completion, the server reboot is initiated automatically, see Figure Rebooting Server.
Login to the server and check the firmware details on the System Info Pop- up. The version is now the latest available, see Figure Downloaded and Installed Firmware.

Viewing System Uptime

To view the System Uptime, perform the following steps.

Steps

Log on to the OpenEdge System. The home page appears.
Select the System option from the side bar. The System Info tab is selected by default.
The System Up Since field gives details of the System Uptime, see Figure System Information.

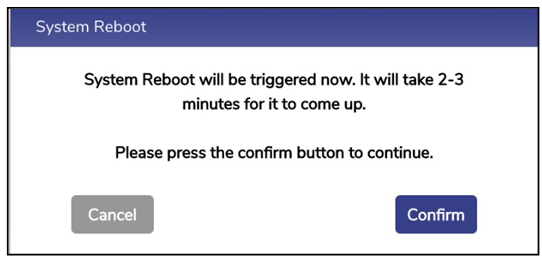

To reboot the system, click on the icon. A confirmation popup appears, see Figure System Reboot.
Click Confirm to proceed. The system will go for a reboot.
